Description

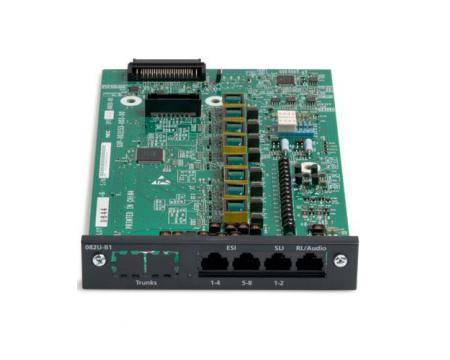

NEC SL2100 0x8x2 Digital/Analog Station Card (BE116506)

• • Features

    • Provides interface for (8) digital stations and (2) analog stations
    • Also provides interface for:
    • Music-on-Hold or Background Music source
    • External paging Zone
    • Equipped with (4) 8-conductor interface jacks.
    • (2) for (8) digital stations
    • (1) for (2) analog stations (or Doorboxes)
    • (1) for Music-on-Hold/Background Music input, and External Paging Zone output, and (2) relay circuit connections.
    • The above relay circuits are available for:
    • Door-strike control, when analog ports are used for Doorboxes
    • Control for Music-on-Hold or Background Music source
    • Control of External Paging Equipment
    • Installs only in universal slots 1-3 of Main or Expansion Chassis.
    • Allows addition of (1) 3-Port CO Trunk Daughter Board (3COIDB) or (1) PRI Daughter Board (1PRDB).
    • Maximum (3) per Main or Expansion Chassis.
    • Maximum (9) per system.
  • Refurbished with One Year Warranty
